Spiral Propulsion Machine

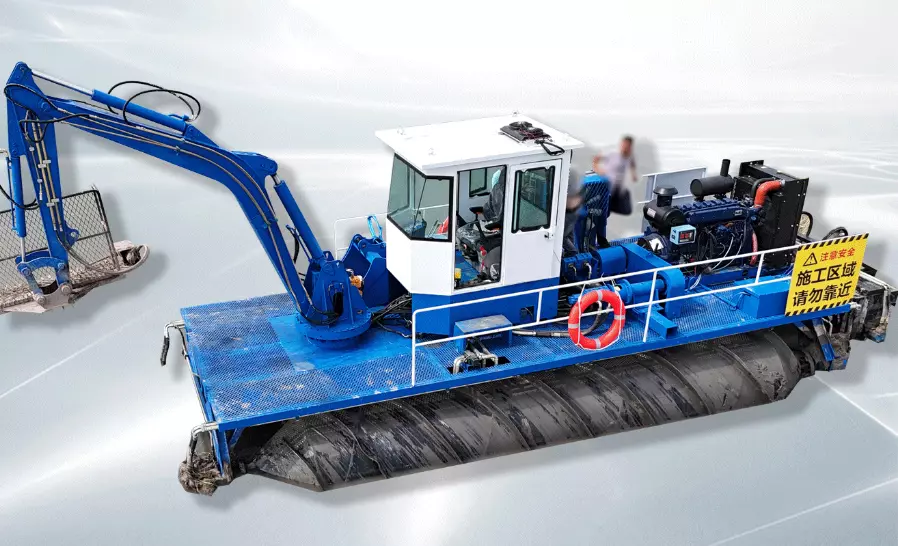

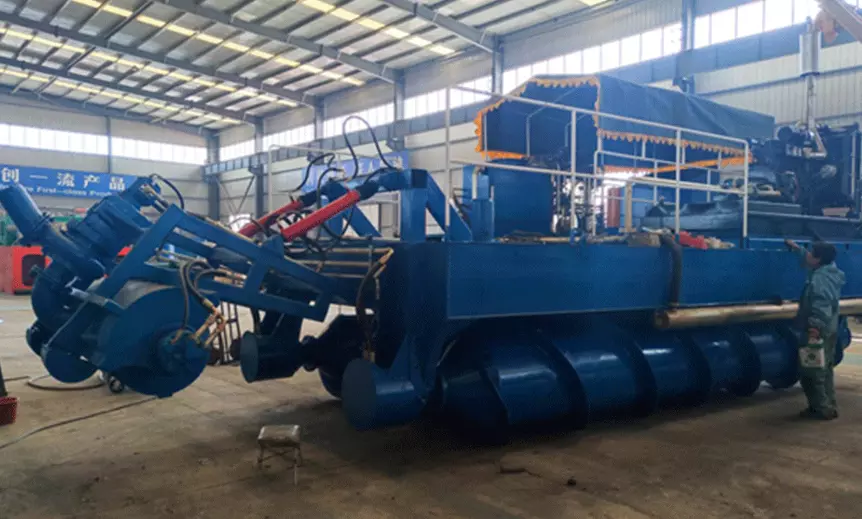

The Amphibious "Little King" is an advanced amphibious vehicle designed for versatile land and water operations. Featuring a unique screw-propulsion system powered by two hollow screw drums, it can travel efficiently on land or float and move forward on water. The hollow drum design provides buoyancy, allowing the machine to traverse difficult terrains such as swamps, mudflats, shallow water areas, and tailing ponds. This multipurpose vehicle is ideal for transporting materials, piling, dredging, and cutting down invasive Spartina grass, offering unmatched flexibility in challenging environments.

Key Features:

• Screw Propulsion System: Powered by two hollow screw drums, the vehicle can move flexibly both on land and water.
• Multi-functional Operations: Equipped with additional functional attachments such as mowers, rotary tillers, excavators, pile drivers, and dredging equipment for various tasks.
• Swamp and Mudflat Capability: Specializes in operating in swampy areas, mudflats, and shallow waters for material transportation, piling, and dredging.
• High Efficiency: Capable of cutting and tilling Spartina grass continuously, with a work capacity of up to 20 acres per day.

Application Areas:

• Spartina Grass Harvesting: Capable of cutting, crushing, and tilling Spartina grass in one continuous process for high work efficiency.
• Shallow Water Piling: Operates efficiently in shallow waters, driving piles with precision using screw propulsion and positioning stakes.
• River Mudflat Dredging: Dredges shallow rivers and mudflats, clearing trash, vegetation, and can transport personnel and materials in muddy environments.
• Tailings Pond Operation: Moves in tailings ponds and can assist with setting up drainage systems and drilling platforms.

Product Specifications:

• Dimensions: 9x3.7x3.5m
• Total Power: 300kw
• Travel Speed: 0-2.5km/h
• Diesel Engine Power: 300kw
• Screw Drum Rotation Speed: 2000 rpm
• Hydraulic Pump Pressure: 20mpa
• Excavator Arm Length: 5.2m
• Cutting Shear Speed: 300 strokes/min
• Rotary Tiller Width: 1.8m
• Cabin Dimensions: 1500x1400x1.5m
• Control Valve Pressure: 20MPA
