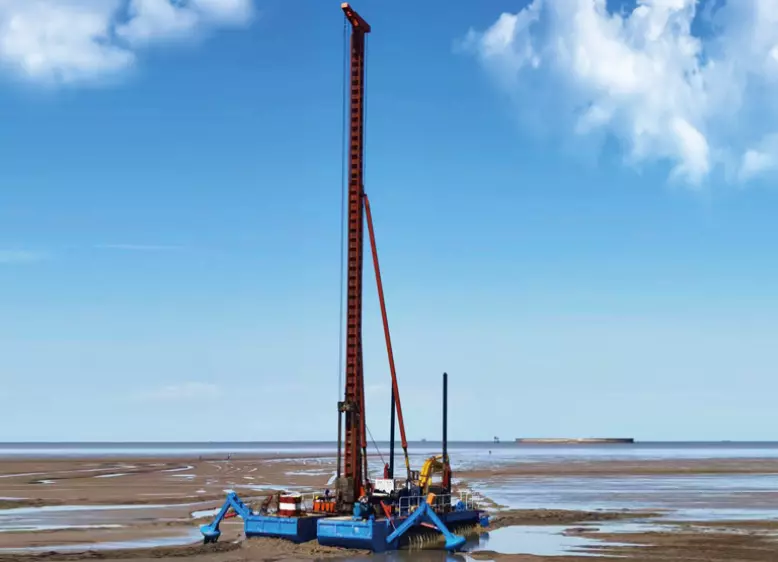

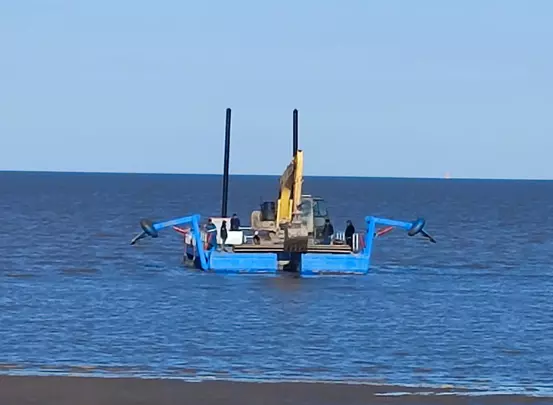

Mudland Spiral Piling Platform
Mudland Spiral Piling Platform 1 Mudland Spiral Piling Platform 2
Amphibious Dredging Machines
Model: applicable in snow, shallow water, and coastal working environments

Mudland Spiral Piling Platform

FOB Price:Request for Quotation
Request a Quote WhatsApp
  • CE & EPA Certified
  • 18-Month Warranty
  • Global Parts Warehouses

Mudland Spiral Piling Platform

This platform is widely applicable in snow, shallow water, and coastal working environments, featuring excellent adaptability and stability.

Product Parameters

Parameter Specification
Dimensions (LOA) 20 x 8 x 1.5 m
Total Power 120 kW
Control System Fully Hydraulic
Travel Speed 0-6 km/h
Working Speed 0-1 km/h
Diameter of Spiral Propeller 1000 mm
Length of Spiral Propeller 6.5 m
Hydraulic Pump Displacement 150 L/min
Pontoon Size 20 x 4 x 1.5 m
Material Bottom plate: 8 mm; Side plate: 5 mm
SPUD Diameter 273 mm
Pull Force of Winch 40 kN
Propeller Blade Diameter 480 mm

Features

  • Shallow Water Mode: Enables smooth travel in shallow water.
  • Hydraulic Stability: Ensures easy and stable movement.
  • Snow Mode: Allows flexible mobility on snow-covered surfaces.
  • Marine Mode: Provides stability for forward movement in coastal areas.


Waterway & Port Maintenance

Channel, berth and basin dredging

Sand & Aggregate Mining

River, lake and nearshore sand extraction

Land Reclamation

Hydraulic fill for coastal and site works

Aquatic Plant & River Cleanup

Water hyacinth, reed and debris harvesting
